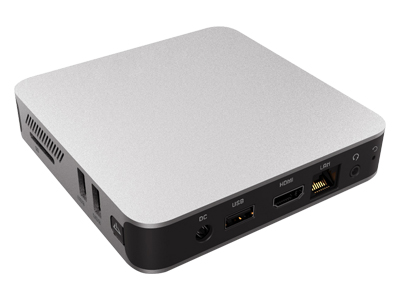

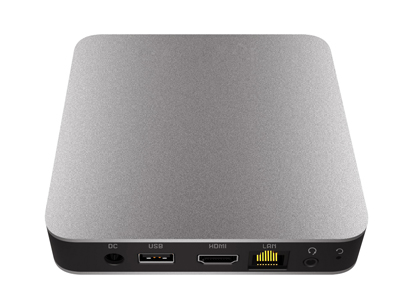

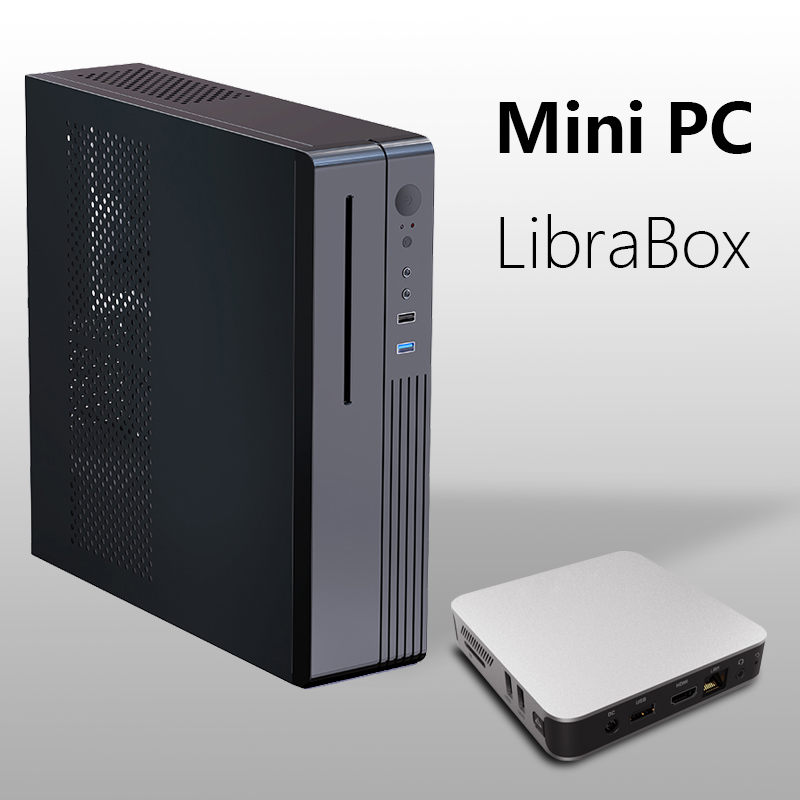

LibraBox PB01M是一款全铝合金机身的Mini PC电脑主机，LibraBox迷你电脑主机其搭载的是英特尔Gemini Lake-R和Jasper Lake两个系列的处理器，可以选择CPU型号分别为N4020/N4120/N5030/ N4500/N5100/N6000，主打一个性价比，客人可以根据需求定制内存和存储，其分别为内存LPDDR4 4GB（最大支持8GB），存储为板载的eMMC 64GB（最大支持128GB）
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |
| Product Form | Product Form | Mini PC |
| Material | Metal | |
| Dimensions | 120*120*25mm | |
| Weight | About 400g | |
| Battery | Capacity | NA |
| System Hardware Configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | Gemini Lake-R N4020/N4120/N5030 Jasper Lake N4500/N5100/N6000 |
| GPU | Type | Integrated graphics |
| RAM | Capacity | LPDDR4 4GB/8GB（Optional） |
| eMMC | Capacity | eMMC 64GB/128GB（Optional） |
| SSD | Capacity | M.2 2242 SSD 128GB/256GB /512GB (Optional) |
| HDD | Capacity | NA |
| Speaker | Built-in | NA |
| Hall-sensor | Built-in | NA |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI Module | WIFI 802.11 ac/b/g/n |
| Bluetooth | BT Module | Bluetooth 4.2 |
| RJ45 | External Dongle | RJ45*1 |

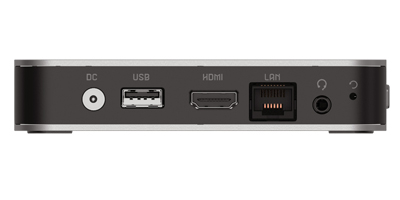

| Interface Configuration: | ||
| Type | Details | Descriptions |
| Memory Card Slot | External Memory | SD Card x1 |
| USB Interface | Support Data Transfer | USB3.1 x3 |
| DC Interface | Power | DC IN x1 |
| Headphone Jack | Music Output | ∮ 3.5mm Standard Headphone Jack x1 |
| VGA Interface | Video Output | VGA x1 |
| HDMI Interface | Video Output | HDMI A Type x1 |
| Main Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | Standard Configuration | DC 12V/ 3A |
| Hot Keys | Power Button | Power Button x1 |
| Reset Button | Reset Button x1 | |
| Software Configuration: | ||
| Type | Details | Descriptions |
| Operating System | Windows | Windows 10，64 bit |
